数仓培训第九天

2020-05-10

原创字数统计: 2.9k | 阅读时长: 15分

1.YARN部署

修改对应配置文档:

[root@hadoop001 hadoop]$ su - hadoop
[hadoop@hadoop001 hadoop]$ cd app/hadoop/etc/hadoop/
[hadoop@hadoop001 hadoop]$ mv mapred-site.xml.template mapred-site.xml
#没有mapred文件，将tempele文件复制改名
[hadoop@hadoop001 hadoop]$ vi mapred-site.xml
#该文件不要随意删除第一行数据，这是表明是一个xml文件

<configuration>
    <property>
        <name>mapreduce.framework.name</name>
        <value>yarn</value>
    </property>
</configuration>

[hadoop@hadoop001 hadoop]$ vi yarn-site.xml

<configuration>

<!-- Site specific YARN configuration properties --> #这之内的是可以删除的注释
<property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
    </property>
    <property>
        <name>yarn.resourcemanager.webapp.address</name>
        <value>hadoop001:18808</value> # 主机名改为自己的机器名字。端口号修改一下，范围1-65535
    </property>
</configuration>

yarn默认你端口号8088.
8088端口暴露外网，会被病毒感染植入挖矿程序用来计算比特币
8088内网不用怕，外网可加安全验证

Start ResourceManager daemon and NodeManager daemon: 启动yarn进程

[hadoop@hadoop001 hadoop]$ pwd
/home/hadoop/app/hadoop/etc/hadoop
[hadoop@hadoop001 hadoop]$ cd ../../
[hadoop@hadoop001 hadoop]$ pwd
/home/hadoop/app/hadoop
[hadoop@hadoop001 hadoop]$ sbin/start-yarn.sh
starting yarn daemons
starting resourcemanager, logging to /home/hadoop/app/hadoop-2.6.0-cdh5.16.2/logs/yarn-hadoop-resourcemanager-hadoop001.out
hadoop001: starting nodemanager, logging to /home/hadoop/app/hadoop-2.6.0-cdh5.16.2/logs/yarn-hadoop-nodemanager-hadoop001.out
[hadoop@hadoop001 hadoop]$

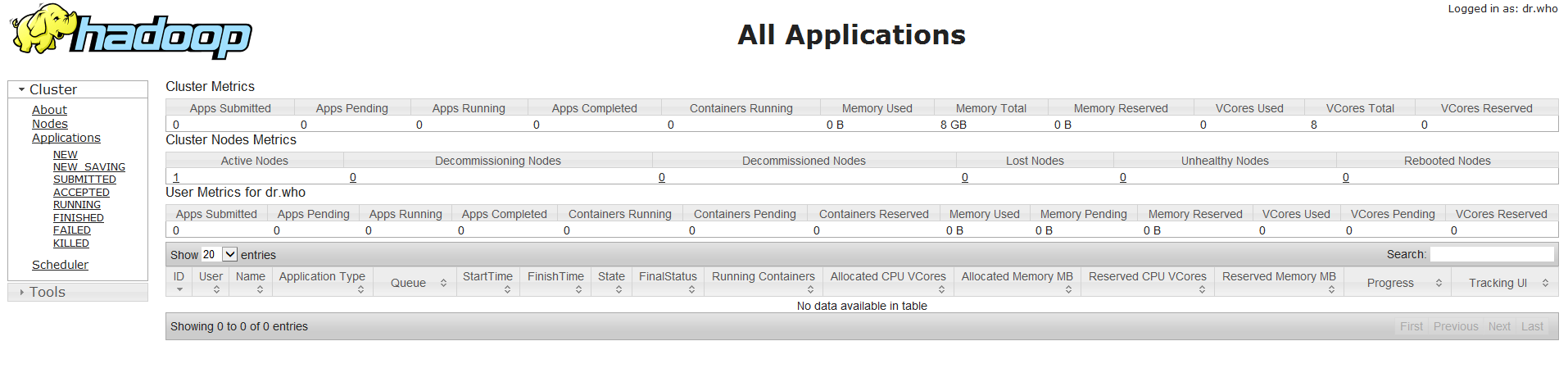

open web:
http://192.168.111.131:18808/cluster # ip:port/cluster

2.词频统计

提前为hdfs配置环境变量 etc/profile

1 2	export HADOOP_HOME=/home/hadoop/app/hadoop export PATH=$HADOOP_HOME/bin:$HADOOP_HOME/sbin:$PATH

否则只能在/app/hadoop文件夹下使用bin/hdfs dfs -ls / 进行对应操作

[hadoop@hadoop001 data]$ hdfs dfs -mkdir  /wordcount2
#创建input文件夹，output文件夹会自动生成,output文件不能提前存在，否则报错
[hadoop@hadoop001 data]$ hdfs dfs -mkdir  /wordcount2/input/
#将所在文件夹所有数据上传
[hadoop@hadoop001 word]$ hdfs dfs -put * /wordcount2/input #-put是将linux放到hdfs中
20/05/11 16:14:43 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform...
using builtin-java classes where applicable
[hadoop@hadoop001 word]$ hdfs dfs -ls /wordcount2/input
20/05/11 16:14:57 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform...
using builtin-java classes where applicable
Found 2 items
-rw-r--r--   1 hadoop supergroup         29 2020-05-11 16:14 /wordcount2/input/1.log
-rw-r--r--   1 hadoop supergroup         47 2020-05-11 16:14 /wordcount2/input/2.log

[hadoop@hadoop001 hadoop]$ hadoop jar \
./share/hadoop/mapreduce2/hadoop-mapreduce-examples-2.6.0-cdh5.16.2.jar \
wordcount /wordcount2/input/ /wordcount2/output/

20/05/11 16:19:25 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform...
using builtin-java classes where applicable
20/05/11 16:19:26 INFO client.RMProxy: Connecting to ResourceManager at /0.0.0.0:8032
20/05/11 16:19:29 INFO input.FileInputFormat: Total input paths to process : 2

20/05/11 16:19:29 INFO mapreduce.JobSubmitter: number of splits:2
# 思考: mapreduce的split=map的个数 是什么影响的
  #1) 文件的大小。
  #2) 文件的个数。
  #3) splitsize的大小。

20/05/11 16:19:29 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_1589182412203_0001
20/05/11 16:19:30 INFO impl.YarnClientImpl: Submitted application application_1589182412203_0001
20/05/11 16:19:30 INFO mapreduce.Job: The url to track the job:
http://hadoop001:18808/proxy/application_1589182412203_0001/
20/05/11 16:19:30 INFO mapreduce.Job: Running job: job_1589182412203_0001
20/05/11 16:19:45 INFO mapreduce.Job: Job job_1589182412203_0001 running in uber mode : false
20/05/11 16:19:45 INFO mapreduce.Job:  map 0% reduce 0%
20/05/11 16:19:55 INFO mapreduce.Job:  map 50% reduce 0%
20/05/11 16:19:57 INFO mapreduce.Job:  map 100% reduce 0%
20/05/11 16:20:02 INFO mapreduce.Job:  map 100% reduce 100%
20/05/11 16:20:02 INFO mapreduce.Job: Job job_1589182412203_0001 completed successfully
20/05/11 16:20:02 INFO mapreduce.Job: Counters: 49
	File System Counters
		FILE: Number of bytes read=122
		FILE: Number of bytes written=429243
		FILE: Number of read operations=0
		FILE: Number of large read operations=0
		FILE: Number of write operations=0
		HDFS: Number of bytes read=294
		HDFS: Number of bytes written=43
		HDFS: Number of read operations=9
		HDFS: Number of large read operations=0
		HDFS: Number of write operations=2
	Job Counters
		Launched map tasks=2
		Launched reduce tasks=1
		Data-local map tasks=2
		Total time spent by all maps in occupied slots (ms)=17984
		Total time spent by all reduces in occupied slots (ms)=4063
		Total time spent by all map tasks (ms)=17984
		Total time spent by all reduce tasks (ms)=4063
		Total vcore-milliseconds taken by all map tasks=17984
		Total vcore-milliseconds taken by all reduce tasks=4063
		Total megabyte-milliseconds taken by all map tasks=18415616
		Total megabyte-milliseconds taken by all reduce tasks=4160512
	Map-Reduce Framework
		Map input records=25
		Map output records=19
		Map output bytes=139
		Map output materialized bytes=128
		Input split bytes=218
		Combine input records=19
		Combine output records=12
		Reduce input groups=8
		Reduce shuffle bytes=128
		Reduce input records=12
		Reduce output records=8
		Spilled Records=24
		Shuffled Maps =2
		Failed Shuffles=0
		Merged Map outputs=2
		GC time elapsed (ms)=286
		CPU time spent (ms)=1590
		Physical memory (bytes) snapshot=480874496
		Virtual memory (bytes) snapshot=8181796864
		Total committed heap usage (bytes)=307437568
	Shuffle Errors
		BAD_ID=0
		CONNECTION=0
		IO_ERROR=0
		WRONG_LENGTH=0
		WRONG_MAP=0
		WRONG_REDUCE=0
	File Input Format Counters
		Bytes Read=76
	File Output Format Counters
		Bytes Written=43

[hadoop@hadoop001 hadoop]$ hdfs dfs -ls /wordcount2/output/
20/05/11 16:35:51 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform...
using builtin-java classes where applicable
Found 2 items
-rw-r--r--   1 hadoop supergroup          0 2020-05-11 16:20 /wordcount2/output/_SUCCESS
-rw-r--r--   1 hadoop supergroup         43 2020-05-11 16:20 /wordcount2/output/part-r-00000

# mapreduce跑完结束，文件的个数=reduce分区函数由什么决定，当前是1 由配置参数控制，使用过多的Reduce任务则意味着复杂的shuffle，并使输出文件的数量激增

[hadoop@hadoop001 hadoop]$ hdfs dfs -get /wordcount2/output/*
[hadoop@hadoop001 hadoop]$ cat part-r-00000
a	1
b	7
bb	1
c	1
qi	1
ruoze	2
shi	3
wang	3
[hadoop@hadoop001 hadoop]$

3.jps命令

Jps命令—使用详解

3.1 位置

1 2	[hadoop@hadoop001 hadoop]$ which jps /usr/java/jdk1.8.0_181/bin/jps

3.2 使用

[hadoop@hadoop001 hadoop]$ jps
28256 ResourceManager
15617 FsShell
60210 FsShell
60386 Jps
27363 NameNode
59604 FsShell
27591 DataNode
28364 NodeManager
27967 SecondaryNameNode
[hadoop@hadoop001 hadoop]$

3.3 对应的进程标识文件存储在哪

/tmp/hsperfdata_hadoop

[hadoop@hadoop001 tmp]$ cd hsperfdata_hadoop
[hadoop@hadoop001 hsperfdata_hadoop]$ ll
total 256
-rw-------. 1 hadoop hadoop 32768 May 11 16:13 15617
-rw-------. 1 hadoop hadoop 32768 May 11 17:11 27363
-rw-------. 1 hadoop hadoop 32768 May 11 17:11 27591
-rw-------. 1 hadoop hadoop 32768 May 11 17:11 27967
-rw-------. 1 hadoop hadoop 32768 May 11 17:11 28256
-rw-------. 1 hadoop hadoop 32768 May 11 17:11 28364
-rw-------. 1 hadoop hadoop 32768 May 11 16:02 59604
-rw-------. 1 hadoop hadoop 32768 May 11 16:09 60210
[hadoop@hadoop001 hsperfdata_hadoop]$ mv 27591 27591.bak
[hadoop@hadoop001 hsperfdata_hadoop]$ ps -ef |grep DataNode
hadoop   27591     1  3 15:32 ?        00:03:15 /usr/java/jdk1.8.0_181/bin/java -Dproc_datanode \
-Xmx1000m -Djava.net.preferIPv4Stack=true -Dhadoop.log.dir=/home/hadoop/app/hadoop-2.6.0-cdh5.16.2/logs \
-Dhadoop.log.file=hadoop.log -Dhadoop.home.dir=/home/hadoop/app/hadoop-2.6.0-cdh5.16.2 \
-Dhadoop.id.str=hadoop -Dhadoop.root.logger=INFO,console \
-Djava.library.path=/home/hadoop/app/hadoop-2.6.0-cdh5.16.2/lib/native \
-Dhadoop.policy.file=hadoop-policy.xml -Djava.net.preferIPv4Stack=true \
-Djava.net.preferIPv4Stack=true -Djava.net.preferIPv4Stack=true \
-Dhadoop.log.dir=/home/hadoop/app/hadoop-2.6.0-cdh5.16.2/logs \
-Dhadoop.log.file=hadoop-hadoop-datanode-hadoop001.log \
-Dhadoop.home.dir=/home/hadoop/app/hadoop-2.6.0-cdh5.16.2 \
-Dhadoop.id.str=hadoop -Dhadoop.root.logger=INFO,RFA \
-Djava.library.path=/home/hadoop/app/hadoop-2.6.0-cdh5.16.2/lib/native \
-Dhadoop.policy.file=hadoop-policy.xml -Djava.net.preferIPv4Stack=true -server \
-Dhadoop.security.logger=ERROR,RFAS -Dhadoop.security.logger=ERROR,RFAS \
-Dhadoop.security.logger=ERROR,RFAS \
-Dhadoop.security.logger=INFO,RFAS org.apache.hadoop.hdfs.server.datanode.DataNode
hadoop   60662 59557  0 17:13 pts/0    00:00:00 grep --color=auto DataNode
[hadoop@hadoop001 hsperfdata_hadoop]$ jps
28256 ResourceManager
15617 FsShell
60210 FsShell
27363 NameNode
59604 FsShell
60663 Jps
28364 NodeManager
27967 SecondaryNameNode
[hadoop@hadoop001 hsperfdata_hadoop]$ #jps查不到时，看看ps -ef
[hadoop@hadoop001 hsperfdata_hadoop]$ mv 27591.bak 27591
mv: cannot stat ‘27591.bak’: No such file or directory
[hadoop@hadoop001 hsperfdata_hadoop]$ ll
total 224
-rw-------. 1 hadoop hadoop 32768 May 11 16:13 15617
-rw-------. 1 hadoop hadoop 32768 May 11 17:16 27363
-rw-------. 1 hadoop hadoop 32768 May 11 17:16 27967
-rw-------. 1 hadoop hadoop 32768 May 11 17:16 28256
-rw-------. 1 hadoop hadoop 32768 May 11 17:16 28364
-rw-------. 1 hadoop hadoop 32768 May 11 16:02 59604
-rw-------. 1 hadoop hadoop 32768 May 11 16:09 60210
# mv命令重命名文件.bak改回来之后会把文件搞没了,移动之后在移动回来无影响
[hadoop@hadoop001 hsperfdata_hadoop]$

3.4 当出现 – process information unavailable进程

不能代表是存在或者不存在，要当心，尤其是使用jps检测状态的
ps -ef|grep xxx 命令是去查看进程的真正手段！！！
用root用户kill进程，进程不存在，jps会显示没有进程信息

[hadoop@hadoop001 hsperfdata_hadoop]$ jps
28256 ResourceManager
15617 FsShell
60210 FsShell
27363 NameNode
59604 FsShell
27591 -- process information unavailable
28364 NodeManager
60878 Jps
27967 SecondaryNameNode
[hadoop@hadoop001 hsperfdata_hadoop]$ ps -ef |grep 27591
hadoop   27591     1  3 15:32 ?        00:03:15 /usr/java/jdk1.8.0_181/bin/java \
-Dproc_datanode -Xmx1000m -Djava.net.preferIPv4Stack=true \
-Dhadoop.log.dir=/home/hadoop/app/hadoop-2.6.0-cdh5.16.2/logs \
-Dhadoop.log.file=hadoop.log -Dhadoop.home.dir=/home/hadoop/app/hadoop-2.6.0-cdh5.16.2 \
-Dhadoop.id.str=hadoop -Dhadoop.root.logger=INFO,console \
-Djava.library.path=/home/hadoop/app/hadoop-2.6.0-cdh5.16.2/lib/native \
-Dhadoop.policy.file=hadoop-policy.xml -Djava.net.preferIPv4Stack=true \
-Djava.net.preferIPv4Stack=true -Djava.net.preferIPv4Stack=true \
-Dhadoop.log.dir=/home/hadoop/app/hadoop-2.6.0-cdh5.16.2/logs \
-Dhadoop.log.file=hadoop-hadoop-datanode-hadoop001.log \
-Dhadoop.home.dir=/home/hadoop/app/hadoop-2.6.0-cdh5.16.2 \
-Dhadoop.id.str=hadoop -Dhadoop.root.logger=INFO,RFA \
-Djava.library.path=/home/hadoop/app/hadoop-2.6.0-cdh5.16.2/lib/native \
-Dhadoop.policy.file=hadoop-policy.xml -Djava.net.preferIPv4Stack=true -server \
-Dhadoop.security.logger=ERROR,RFAS -Dhadoop.security.logger=ERROR,RFAS \
-Dhadoop.security.logger=ERROR,RFAS \
-Dhadoop.security.logger=INFO,RFAS org.apache.hadoop.hdfs.server.datanode.DataNode
hadoop   60889 59557  0 17:20 pts/0    00:00:00 grep --color=auto 27591\

3.5 文件被删除，不影响进程的重启！！

jps并不会影响进程的启动和停止，但是要去看看文件是否清理干净，否则会造成误导

4.pid文件

4.1存储位置 /tmp

[hadoop@hadoop001 tmp]$ ll
total 7904
-rw-rw-r--. 1 hadoop    hadoop          6 May 11 15:32 hadoop-hadoop-datanode.pid
-rw-rw-r--. 1 hadoop    hadoop          6 May 11 15:32 hadoop-hadoop-namenode.pid
-rw-rw-r--. 1 hadoop    hadoop          6 May 11 15:32 hadoop-hadoop-secondarynamenode.pid

4.2 维护进程的pid 写死的

1
2
3

[hadoop@hadoop001 tmp]$ cat hadoop-hadoop-datanode.pid
27591
[hadoop@hadoop001 tmp]$

kill是通过找已经写死的pid的文件找到进程
kill -9 $(pgrep -f xxx) 通过xxx杀了所有

4.3 文件被删除，影响进程的重启！！

进程启动，pid文件写入进程的pid数字
进程关闭时，从pid文件读出pid数字，然后kill -9 pid

4.4 生产上 pid文件真的可以放心的丢在/tmp维护吗？

Linux的/tmp 会有30天的默认删除机制

4.5 如何修改

修改pid
在app/hadoop/etc/hadoop/hadoop-env.sh脚本
目标/home/hadoop/tmp/中

export HADOOP_PID_DIR=/home/hadoop/tmp/

修改之后最好确认一下原来部分文件是否存在，否则可能会出现问题

总结：
pid文件生产不要丢在/tmp目录
要知道是影响进程的启动停止

5.块 block介绍及生产经验

HDFS 存储大文件是利好，存储小文件是损害自己的
适合存储大文件不适合小文件，不代表不能存储小文件

例如：
一个260m 的 mv文件，上传到hdfs,会把文件切割成3块（dfs.blocksize 134217728 =128M）
分别为（128m、128m、4m）

伪分布式节点（单节点） 1节点副本数 dfs.replication 1 （副本数即为服务器数，备份数）
生产上HDFS集群的 DN肯定大于>=3台 dfs.replication=3

DN1          DN2   DN5  DN10
128m b1            b1   b1
128m b2      b2         b2
4m           b3    b3   b3

通过设置副本数来让文件存储在大数据HDFS平台上有容错保障

dfs.blocksize为什么由64M变为128M，为了减少分块的数量，降低nn的负担
生产上可以提高blocksize，减少块的数量，取决于你的文件能否达到size

副本数3：存储实际大小=文件大小3=2603=780m 存储空间

5个块的元数据信息维护是不是比3个块的元数据的信息维护要多，
维护重累–》namenode

所以nn是不喜欢小文件的

1亿个10kb文件 3亿个block
1亿个10kb文件压缩成1KW个文件100m 3KW的block

如何规避小文件
1.数据传输到hdfs之前就合并
2.数据已经在hdfs上，就定时去合并不常用文件 -冷文件-读写不太频繁，在业务低谷时，晚上合并，或者合并前三十天的数据
/2020/10/10
/2020/10/11
/2020/10/12 当前时间在用，可能有问题

例如：
20号合并14号的文件
21号合并15号的文件

一天卡一天的合并

经验值：

10m一下的文件  都是小文件

128m的就合并到120m文件

代码设置成128m，真正合并时可能会超，变成129m，就是两个块， 因为有些文件不可切割

版权声明： 本博客所有文章除特别声明外，著作权归作者所有。转载请注明出处！
